Description
GALVANISED METAL U TYPE FENCE POST FOOT,SUPPORT, ANCHOR
WITHOUT MASKING CLIP
Unfortunately clips are not available

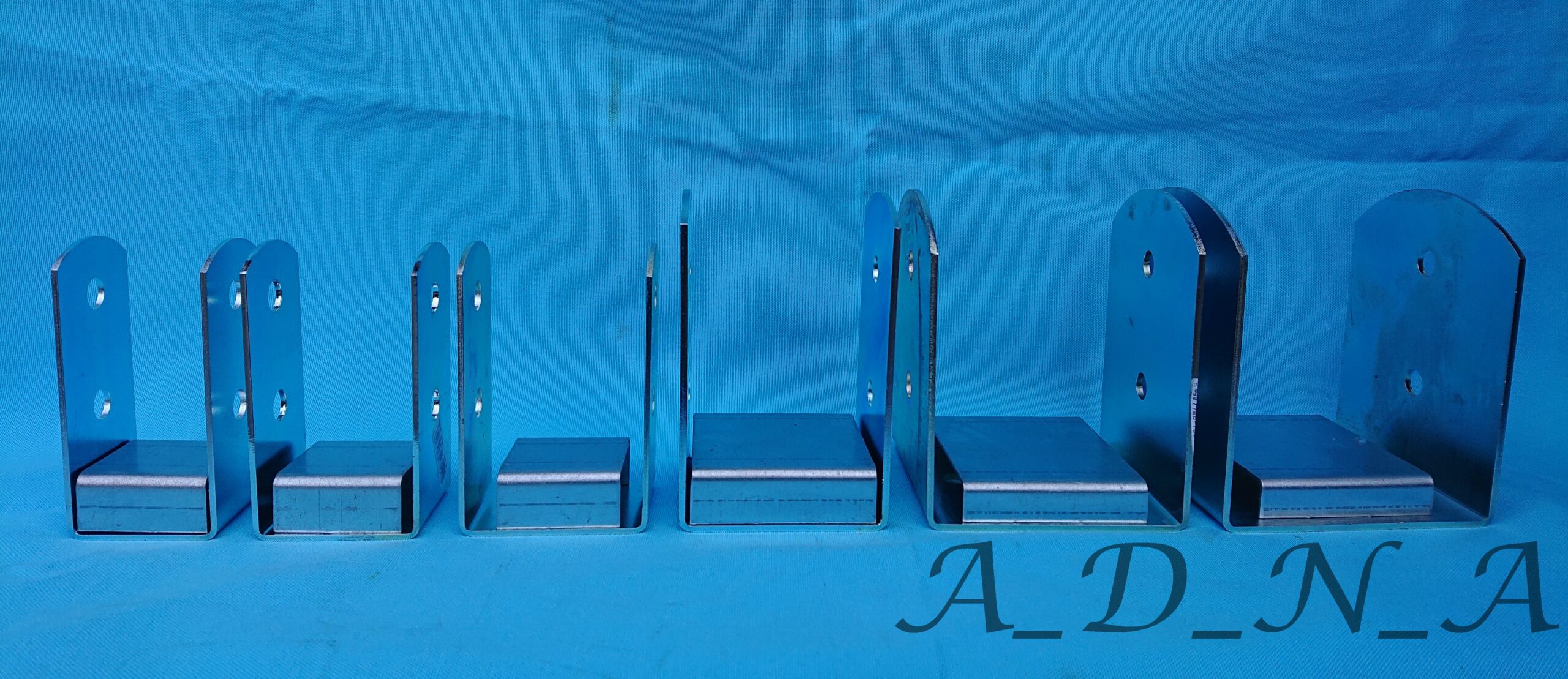

Our post supports are designed to fit the following posts :
Support used for connecting wooden posts with concrete.
It is equipped with an element masking the mount, which gives a better visual effect.Advantages:
- Comply with building code requirements
- Long term of providing protection
- Enhance the stability of the post
- Perfect for timber post
- Anti-rust
- Can be used in humid environments
- Additionally, the zinc plating means it is corrosion resistant so that it can be used for a very long time and makes your cost effective

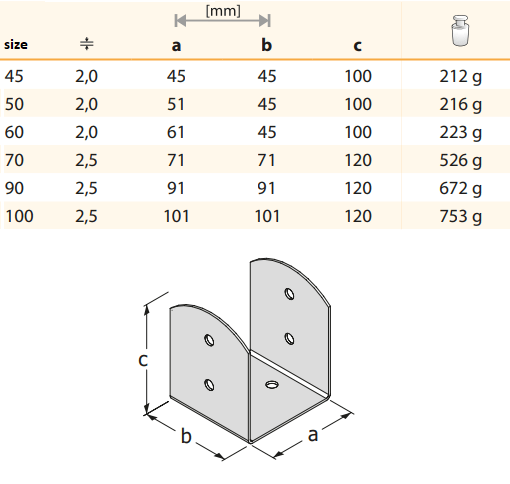

For measurement guidance see pictures.
|

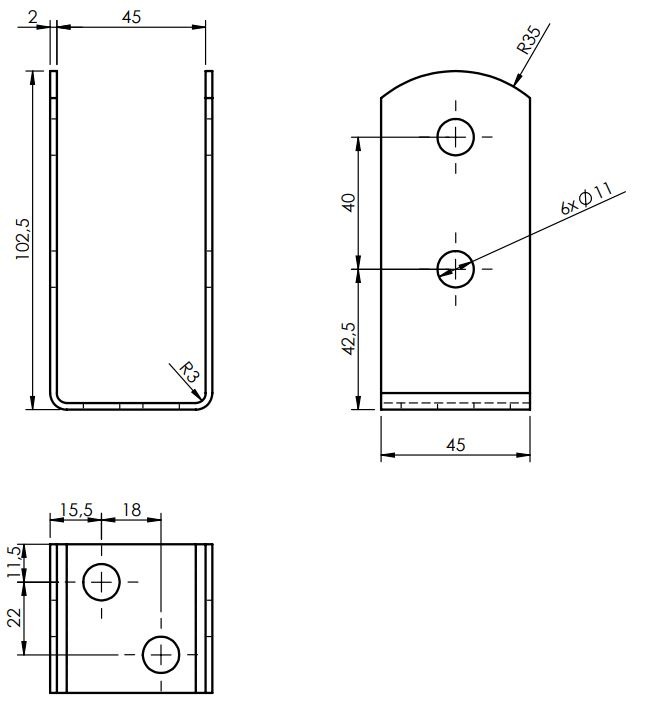

| 45mm (1.77″)
TOTAL HEIGHT 100mm;
: a45mm x b45mm x c100mm
holes 11mm
thickness 2mm

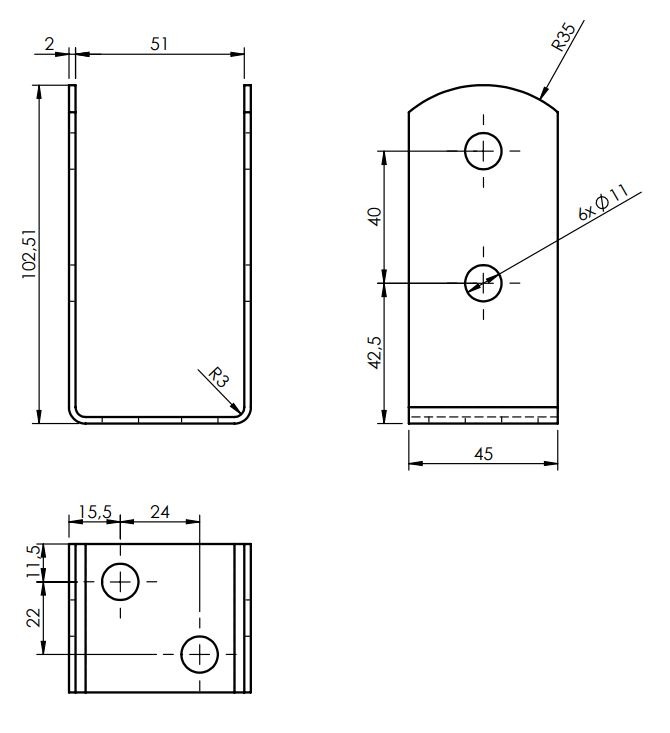

50mm (1.97″)
TOTAL HEIGHT 100mm;
: a51mm x b45mm x c100mm
holes 11mm
thickness 2mm
|

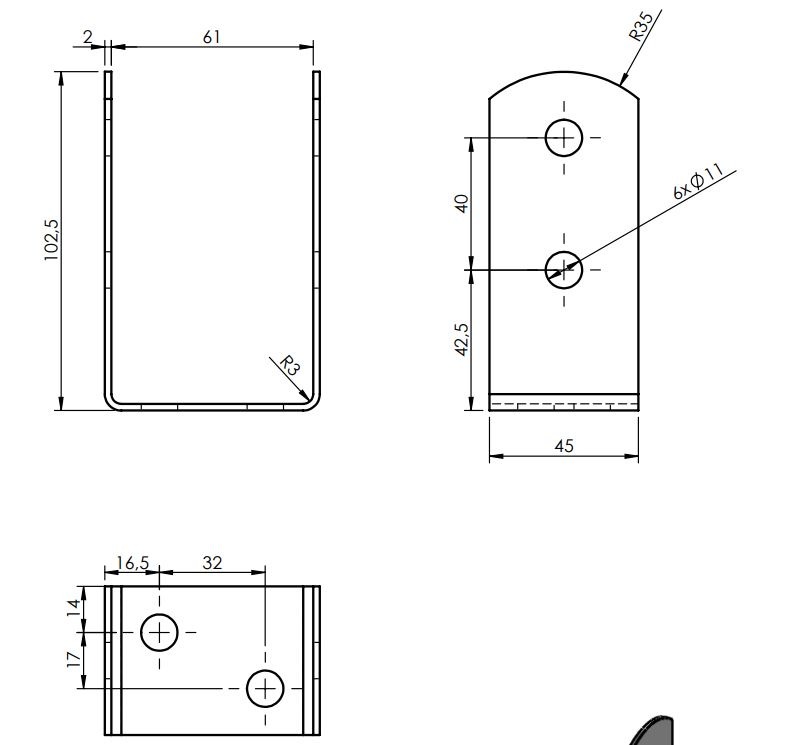

| 60mm (2.36″)
TOTAL HEIGHT 100mm;
: a61mm x b45mm x c100mm
holes 11mm
thickness 2mm
|

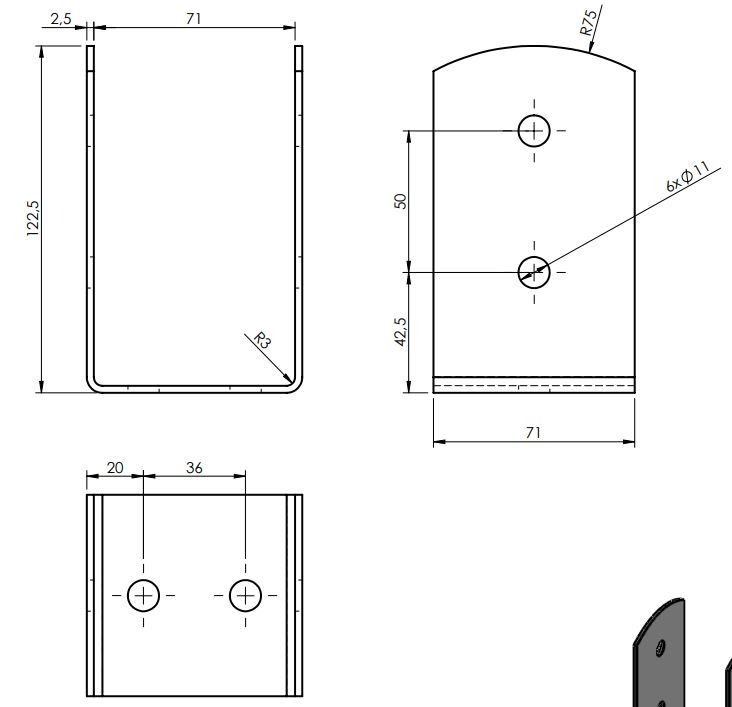

| 70mm (3″)
TOTAL HEIGHT 120mm;
: a71mm x b71mm x c120mm
holes 11mm
thickness 2.5mm
|

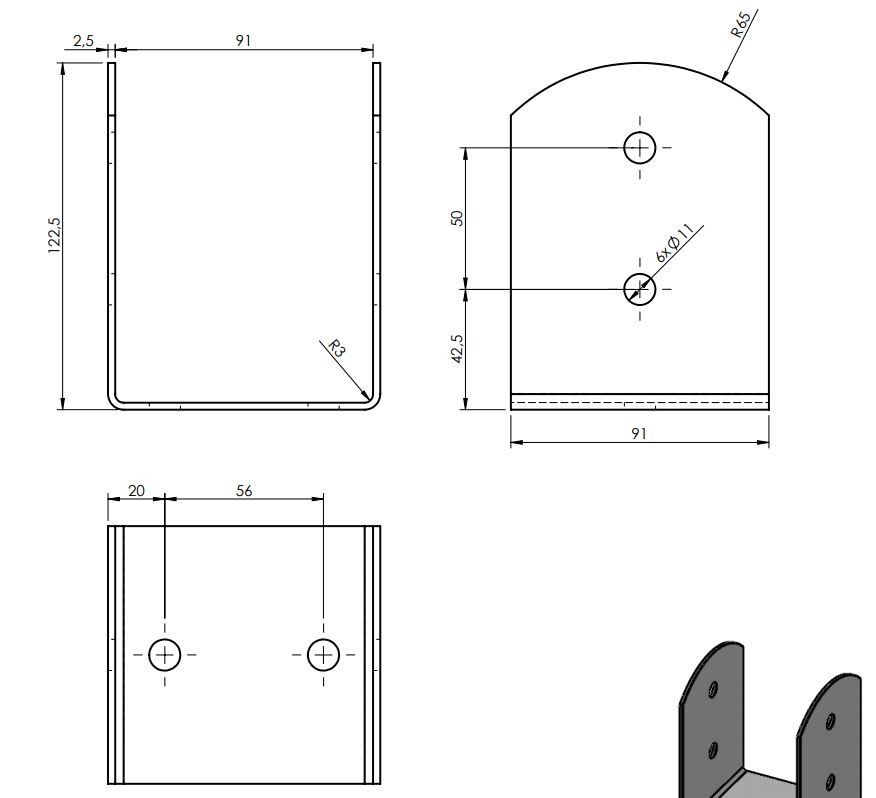

| 90mm (3.5″)
TOTAL HEIGHT 120mm ;
: a91mm x b91mm x c120mm
holes 11mm
thickness 2.5mm
|

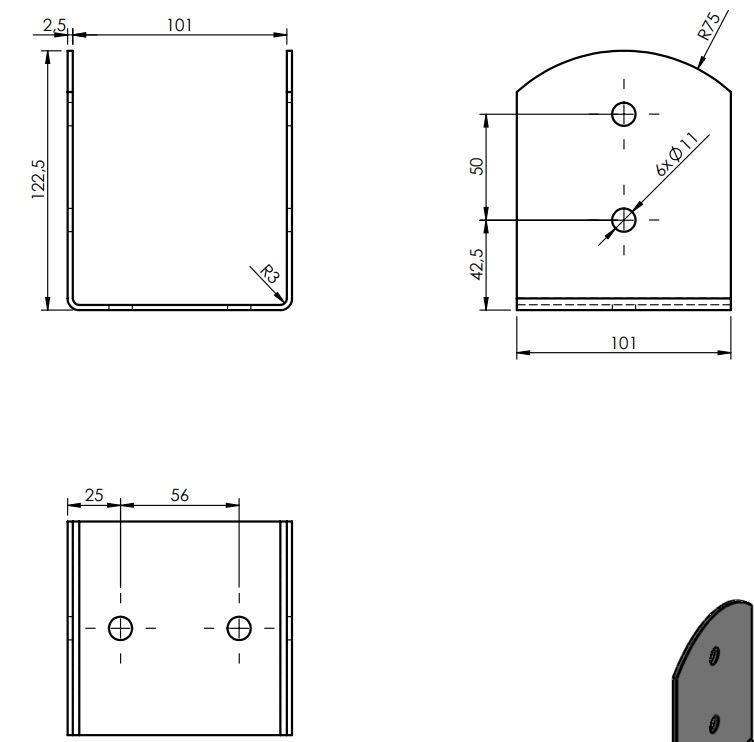

| 100mm (4″)
TOTAL HEIGHT 140mm ;
BASE PLATE : a101mm x b101mm x c140mm
holes 11mm
thickness 2.5mm
|
|
